3-Spindle Rotary Table Type Servo-motor Processing Machine

LFS-4R-SV1103

LIAN FENG SHENG MACHINERY CO., LTD.

Product Information - 3-Spindle Rotary Table Type Servo-motor Processing...

Inquire Now Add to Inquiry Cart

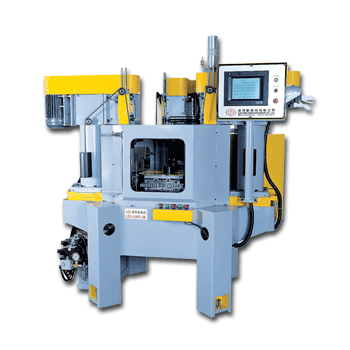

Click for a larger picture.

3-Spindle Rotary Table Type Servo-motor Processing Machine

Product Description

Product Name:

3-Spindle Rotary Table Type Servo-motor Processing Machine

Country of Origin:

Taiwan

Model:

LFS-4R-SV1103

Detail Specifications

Function :
1. 1st spindle rough reaming motor:3HPx6P
2. 2nd spindle finish reaming motor:3HPx6P
3. 3rd spindle tapping servo-motor:2kw
4. Motor horse power changes subject to size of work piece
5. Spindle outside diameter 110, Max stroke 150mm
6. All spindle of the machine is servo-motor & ball screw driven

Specification :
1. Electric system PLC
2. Hydraulic pump motor:2HPx4P single pump=1set
3. Cutting fluid setting: water pump motor 1/4HP
4. Total horse power: 14HP
5. Machine size:L1700xW2100xH2200(mm)
6. Total weight:3000KG

Related Products



Contact Information

Company:LIAN FENG SHENG MACHINERY CO., LTD.
Address:No. 21, Haifeng Rd., Xihu Town, Changhua County, Taiwan 514
Telephone:886-4-882-9826
Fax:886-4-882-9819
Contact Person: SHENG YUAN LEE (MANAGER)
