3-Spindle Slide Type Drilling Reaming & Tapping Machine

LFS-110-3S

LIAN FENG SHENG MACHINERY CO., LTD.

Product Information - 3-Spindle Slide Type Drilling Reaming & Tapping Ma...

Inquire Now Add to Inquiry Cart

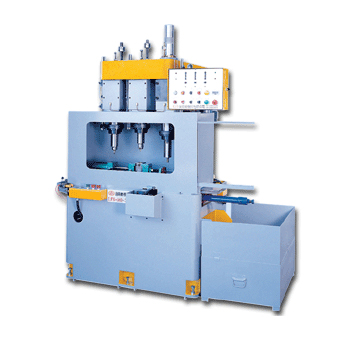

Click for a larger picture.

3-Spindle Slide Type Drilling Reaming & Tapping Machine

Product Description

Product Name:

3-Spindle Slide Type Drilling Reaming & Tapping Machine

Model:

LFS-110-3S

Detail Specifications

Function :
1. 1st spindle drilling motor:3HPx6P
2. 2rd spindle reaming motor:3HPx6P
3. 3rd spindle tapping motor:3HPx6P
4. Motor horse power change subject to size of work piece
5. Tap spindle motor with options of brake motor or frequency converter installation
6. Spindle outside diameter 110, Max stroke 150mm
7. Chuck transposition hydraulic slide erforms twice orientation

Specification :
1. Electric system PLC
2. Hydraulic pump motor:2HPx4P single pump=1set,
3. Cutting fluid setting: water pump motor 1/4HP, tank capacity 200 liter
4. Total horse power:11HP
5. Machine size:L1500xW1900xH2200(mm)
6. Total weight:2500KG
