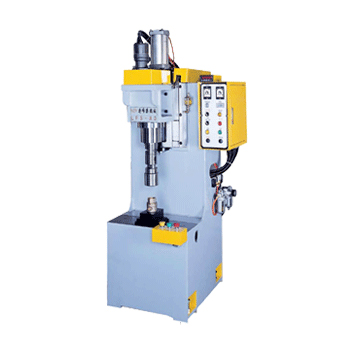

One Spindle Assembly Machine

Function :
1. Adopts hydraulic driven circumrotating motor, torque is easy to adjust when assembling
2. Performs straight & reverse assembling
3. Main spindle top & bottom adopt air pressure slide, and with high stability when assembling, make sure to screw the workpiece tightly
4. Multi-spindle model designs are available according to requirements

Specification :
1. Electric system PLC
2. Hydraulic motor 5HP fixed quantity pump
3. Total horse power: 5HP
4. Machine size:L1000xW800xH1900(mm)
5. Total weight:500KG
