2-Spindle 16 holds slide type drilling & Tapping Machine

LFS-216S

LIAN FENG SHENG MACHINERY CO., LTD.

Product Information - 2-Spindle 16 holds slide type drilling & Tapping M...

Inquire Now Add to Inquiry Cart

Click for a larger picture.

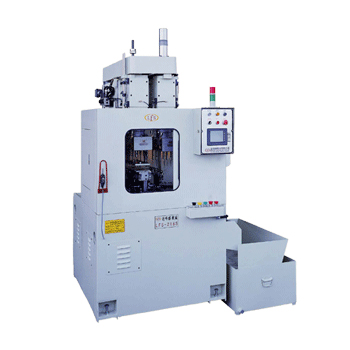

2-Spindle 16 holds slide type drilling & Tapping Machine

Product Description

Product Name:

2-Spindle 16 holds slide type drilling & Tapping Machine

Model:

LFS-216S

Detail Specifications

Function :
1. 1st spindle drilling , motor:3HPx4P
2. 2nd spindle tapping , motor:2HPx8P
3. Spindle outside diameter 110, Max stroke 150mm
4. The spindle is assembled with fixed 16-axis multi-spindle, which can process with 16 holes at a time
5. Auto parts processing , Material: Stainless steel
6. Human machine interface(HMI), as optional equipment

Specification :
1. Electric system PLC
2. Hydraulic pump motor:2HPx4P single pump=1set
3. Cutting fluld setting: water pump motor 1/2HP, tank capacity 200 liter
4. Total horse power:8HP
5. Machine size: L1300xW1300xH2400(mm)
6. Total weight:3000KG
