2-Spindle Polishing Machine

LFS-40-2B

LIAN FENG SHENG MACHINERY CO., LTD.

Product Information - 2-Spindle Polishing Machine

Inquire Now Add to Inquiry Cart

Click for a larger picture.

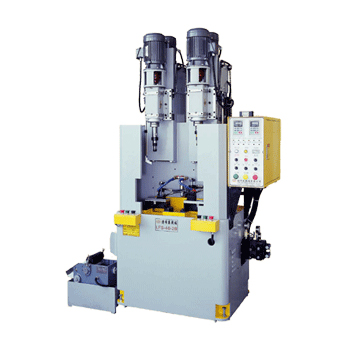

2-Spindle Polishing Machine

Product Description

Product Name:

2-Spindle Polishing Machine

Model:

LFS-40-2B

Detail Specifications

Function :
1. 1st?2nd spindle polishing, motor: 1HPx6P
2. Spindle type:EF-40B,linear glide stud, ball screw set, stroke 350mm, feeding motor 1HP+decelerater
3. The frequency converter for spindle feeding motor, which is used for feeding
4. Thread polished, ID 8~ 12mm

Specification :
1. Electric system PLC
2. Hydraulic pump motor:1HPx4P single pump=1set
3. Cutting fluid setting: water pump motor 1/4HP, tank capacity 100 liter
4. Total horse power:6HP
5. Machine size: L800xW1200xH2400(mm)
6. Total weight:2000KG
