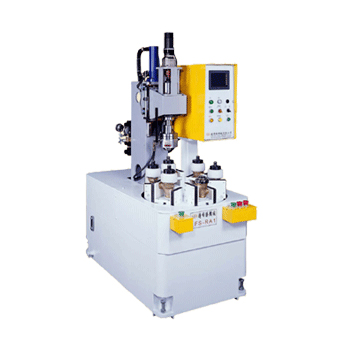

One Spindle Rotary Table Type Servo-motor Tightly Machine

Product Description

Product Name:

One Spindle Rotary Table Type Servo-motor Tightly Machine

Model:

LFS-RA1

Detail Specifications

Function :
1. Fixing spindle, servo-motor 400W
2. Hydraulic vertical slide, stroke 100mm
3. The hydraulic turntable is divided in 6 parts that can fix, feed and unload the work piece simultaneously, which makes the process more effective
4. Fixing spindle is driven by the servo-motor, which enhance the accuracy of the fixed torque, the torque can be adjusted quickly by the human-machine operation, and the maximum fixed torque is at 6kgf-m

Specification :
1. Electric system PLC
2. Hydraulic pump motor:2HPx4P single pump=1set
3. Total horse power:3HP
4. Machine size: L1300xW700xH1800(mm)
5. Total weight:1500KG
